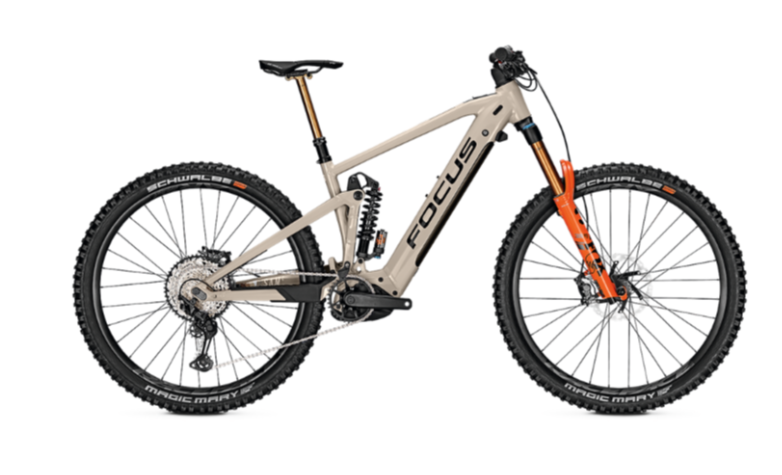

FOCUS SAM² 6.9 Rental - Medium

FOCUS SAM² 6.9 Rental - Medium

Regular price $175.00
Regular price Sale price $175.00
Sale Sold out
Colour
Frame Size

SAM² 6.9 FEATURES

POWERFUL AND AGILE BOSCH PERFORMANCE CX E-DRIVE WITH PURION DISPLAY AND INTEGRATED, REMOVABLE 625 WH BATTERY
170 MM TRAVEL WITH F.O.L.D. KINEMATICS: FOX 38 FACTORY SUSPENSION FORK IN RACING ORANGE AND FOX VAN COIL REAR SHOCK
FULLY INTEGRATED C.I.S. CABLE ROUTING WITH RELIABLE PRECISE SHIMANO XT 1X12 SHIFTING AND STRONG XT 4-PISTON BRAKES

  • SUPER POWERFUL AND DYNAMIC E-MOTOR

    The efficient Bosch Performance CX e-drive (Gen. 4) supports your ride up to 25 km/h with powerful 85 Nm. The strongest e-motor of Bosch is perfectly integrated, the SAM² rides agile and nimble. In eMTB mode, the motor support adjusts automatically to your riding power. Thanks to the integrated, removable 625 Wh battery, you can ride all your trails again and again.

  • OPTIMAL SUSPENSION PERFORMANCE IN ANY SITUATION

    Our F.O.L.D. chassis has been specially designed to meet the increased demands placed on e-MTBs. This means that we can also guarantee the perfect mix for the e-Enduro FOCUS SAM²: F.O.L.D. is extremely sensitive while being progressive enough to prevent a harsh bottom out.

  • DESIGNED FOR DOWN

    A modern, downhill-oriented geometry, 170 mm travel and fast 29" wheels make the FOCUS SAM² ready for the roughest trails. The downhill-oriented focus is enhanced by suspension forks with 38 mm stanchions. Additionally, the fully integrated C.I.S. cable routing ensures a clean cockpit and thanks to the FOCUS Flip Chip you have the option to also ride 27,5" wheels and super short chainstays (430 mm).

Specs

FRAME 7005 hydroformed aluminium, 3D forging, 170 mm F.O.L.D. kinematic, 148x12 mm thru axle, internal cable routing, post mount 203 mm
FRAME MATERIAL Aluminium
FORK FOX 38 Float Factory 29, E-Bike, Grip 2, 110 x 15 mm, 44 mm rake, 170 mm travel
TRAVEL FORK 170 mm
SHOCK FOX Van Performance Coil, 230/65 mm, hardware: 25,0 x 8mm
MOTOR Bosch Performance CX Gen4, 85 Nm, 250 W
BATTERY WATT-HOURS 625 Wh
BATTERY AMPERE HOURS 16,7 Ah
DISPLAY Bosch Purion
SHIFTER Shimano Deore XT M8100, 12-speed
REAR DERAILLEUR Shimano Deore XT M8100, 12-speed
SPROCKET Shimano SLX M7100, 12-speed
CHAIN Shimano SLX CN-M7100
CRANKSET Samox EC40 ISIS
BOTTOM BRACKET Integrated in Drive Unit
TRANSMISSION OF DRIVE front: 34, rear: 10-51
HANDLEBAR RaceFace Chester 35, aluminium, 780mm, rise: 35mm, backsweep: 8°
STEM FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium
GRIPS RaceFace Getta Grip
HEADSET ACROS ZS56/ZS56, FOCUS C.I.S. Integrated
SADDLE Proxim W350
SEATPOST Post Moderne dropper post PM-171, 31.6 mm
BRAKES Shimano XT M8120, 4 piston
BRAKE LEVER Shimano XT M8120, 4 piston
BRAKE Disc
RIMS RaceFace AR30 Offset
REAR HUB Novatec D162 Disc, 12x148 mm
REAR HUB Novatec D041, 15x110 mm
FRONT TYRE Schwalbe Magic Mary 2.6 Super Trail Soft
REAR TYRE Schwalbe Magic Mary 2.6 Super Gravity Soft
GEARS 12
BIKE WEIGHT INCL. BATTERY IN KG 26.20 Kg
